如何在pdf中添加自己小工具，以下示范添加一个打圈圈功能的插件
新建文本文档.txt
把下面代码复制粘贴到文件中保存并改名qq.js

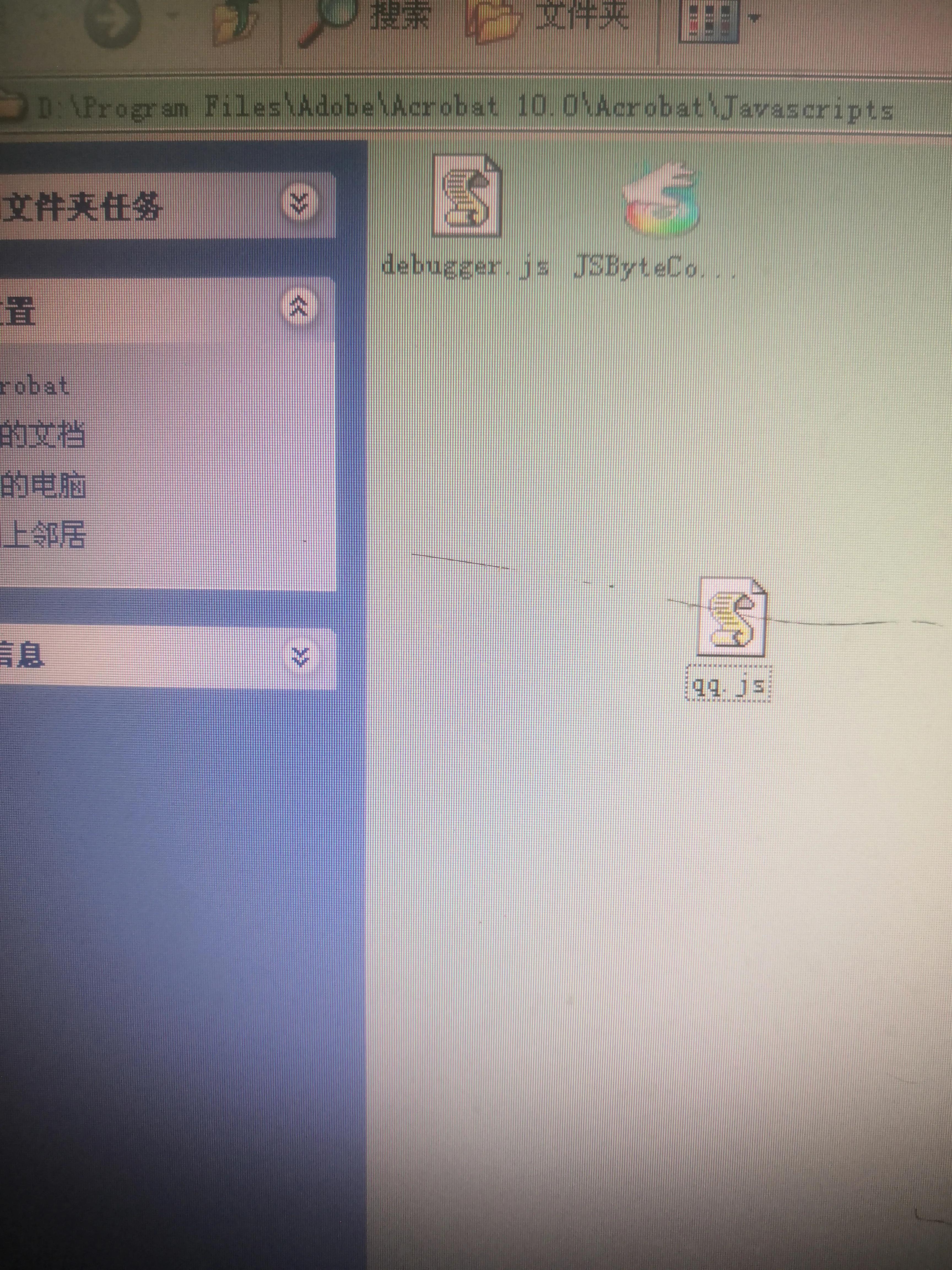

插件放在安装目录下

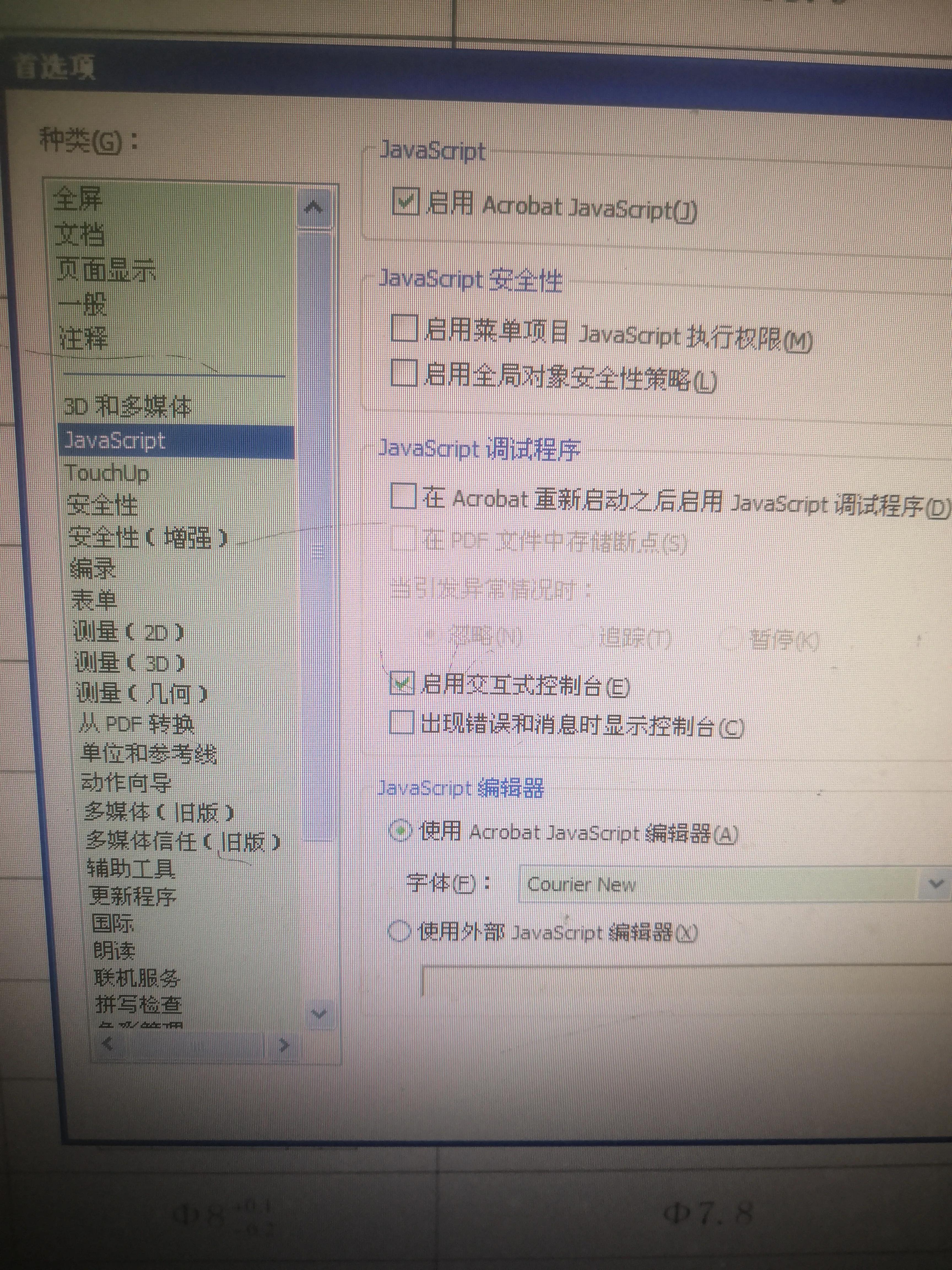

设置一下

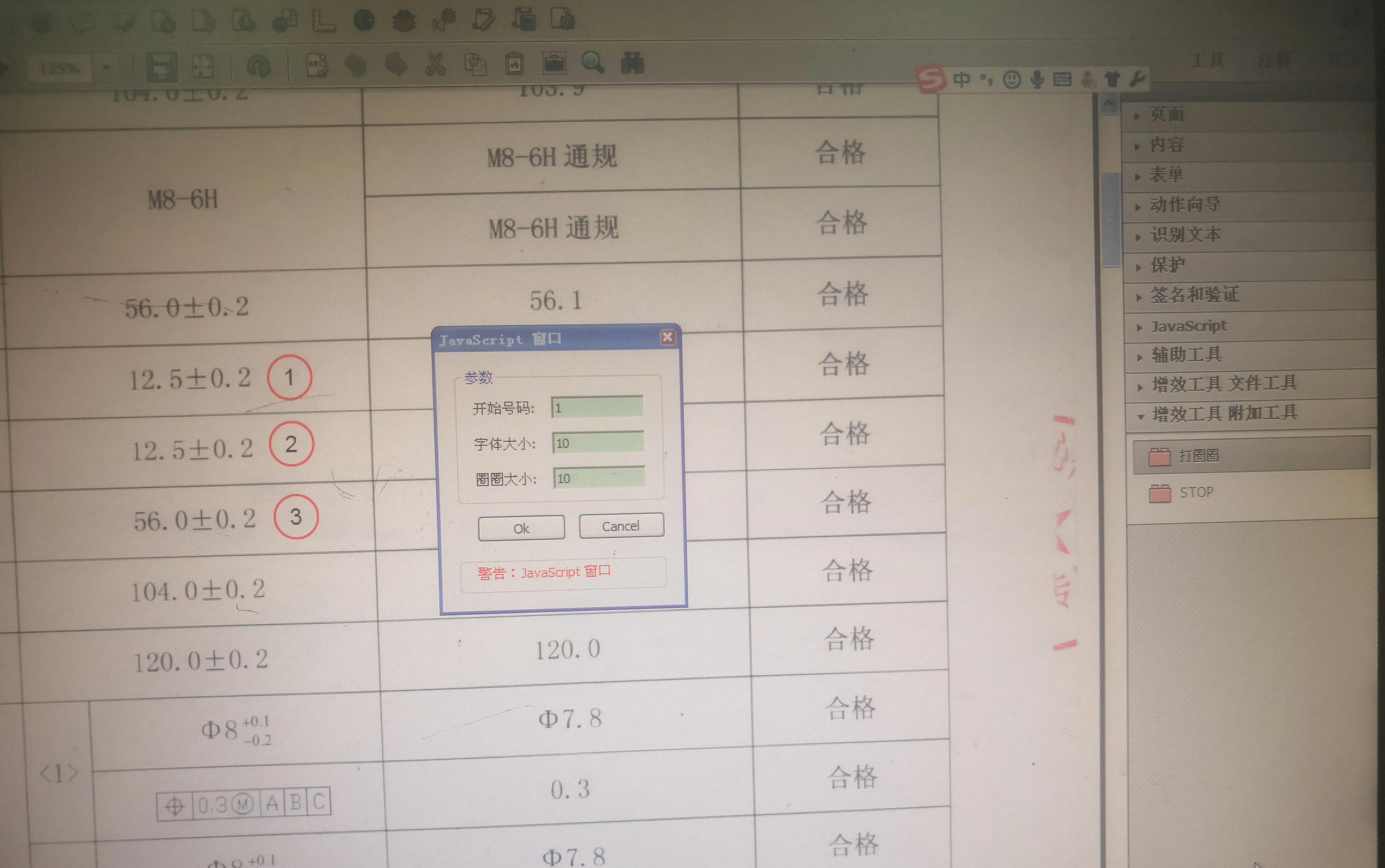

工具就出现
global.cs = 1; //count 开始号码
global.cs1 = 8; //字体大小
global.cs2 = 10; //圈圈大小
var dialog1 =
{
initialize: function(dialog){
}
, commit: function(dialog)
{
// called when OK pressed
var results = dialog.store();
global.cs = results["fnum"];
global.cs1 = results["tnum"];
global.cs2 = results["qnum"];
}
, description:
{
name: "Personal Data", // Dialog box title
align_children: "align_left", width: 120, height: 200, elements: [
{
type: "cluster", name: "参数", align_children: "align_left",
elements: [
{
type: "view", align_children: "align_row", elements: [
{
type: "static_text", name: "开始号码: "
}
,
{
item_id: "fnum", type: "edit_text", alignment: "align_fill",
width: 80, height: 20
}
]
}
,
{
type: "view", align_children: "align_row", elements: [
{
type: "static_text", name: "字体大小: "
}
,
{
item_id: "tnum", type: "edit_text", alignment: "align_fill",
width: 80, height: 20
}
]
}
,
{
type: "view", align_children: "align_row", elements: [
{
type: "static_text", name: "圈圈大小: "
}
,
{
item_id: "qnum", type: "edit_text", alignment: "align_fill",
width: 80, height: 20
}
]
}
]
}
,
{
alignment: "align_center", type: "ok_cancel", ok_name: "Ok",
cancel_name: "Cancel"
}
]
}
};
var myscipt = "n" + "var Dx=global.cs2;n" +
"var x1=this.mouseX-parseInt(Dx);n" + "var x2=this.mouseX+parseInt(Dx);n"
+ "var y1=this.mouseY-parseInt(Dx);n" +
"var y2=this.mouseY+parseInt(Dx);n" + "var rr=new Array(4);n" +
"rr[0]=x1;n" + "rr[1]=y1;n" + "rr[2]=x2;n" + "rr[3]=y2;n" +
"var annot = this.addAnnot({n" + "page: this.pageNum,n" +
"type: "Circle",n" + "rect: rr,n" + "readonly : true,n" +
"strokeColor :color.red ,n" + "fillColor:color.transparent,n" +
"name: "圆"n" + "});n" +
"var m = (new Matrix2D).fromRotated(this,this.pageNum);n" +
"var mInv = m.invert();n" + "r= mInv.transform(rr);n" +
"r=r.toString();n" + "r = r.split(",");n" +
"var count=parseInt(global.cs++);n" +
"var f = this.addField("qq"+count, "text",this.pageNum,[r[0], r[1], r[2], r[3]] );n" + "f.delay = true;n" + "f.alignment = "center";n" + "f.textSize=parseInt(global.cs1);n" + "f.value=count;n" + "f.readonly = false;n" + "f.borderStyle = border.s;n" + "f.lineWidth = 0;n" + "f.strokeColor = color.transparent;n" + "f.delay = false;n"function addbottononpage()
{
if (this.getField("圈圈") == null)
{
var aRect = this.getPageBox(
{
nPage: this.pageNum
}
); //获取当前页大小
var f = this.addField("圈圈", "button", this.pageNum, aRect);
//增加一个当前页大小一样得按钮
f.delay = true;
f.setAction("MouseDown", myscipt); //设置鼠标按下动作
f.highlight = highlight.n;
f.readonly = false;
f.borderStyle = border.s;
f.lineWidth = 0;
f.strokeColor = color.transparent;
f.delay = false;
}
app.execDialog(dialog1);
}
function removestop()
{
if (this.getField("圈圈") != null)
this.removeField("圈圈");
}
// 加入菜单color.red
app.addMenuItem(
{
cName: "快速打圈圈", cUser: "打圈圈", cParent: "Document", cExec:
"addbottononpage();", cEnable: "event.rc = (event.target != null);",
nPos: 0
}
);
//加入按钮
app.addToolButton(
{
cName: "打圈圈", cLabel: "打圈圈", cEnable: "event.rc = (app.doc != null);",
cExec: "addbottononpage();"
}
);
app.addToolButton(
{
cName: "STOP", cLabel: "STOP", cEnable: "event.rc = (app.doc != null);",
cExec: "removestop();"
}
);
// end of script
