python实现绘制多个模型的ROC曲线

1

import pandas as pd

2

import seaborn as sns

3

import matplotlib.pyplot as plt

4

from sklearn.metrics import roc_curve, auc

5

6

def Draw_ROC(file1,file2):

7

data1=pd.read_excel(file1)

8

data1=pd.DataFrame(data1)

9

data2=pd.read_excel(file2)

10

data2=pd.DataFrame(data2)

11

12

fpr_CSNN,tpr_CSNN,thresholds=roc_curve(list(data1['真实标签']),

13

list(data1['positive概率']))

14

roc_auc_CSSSNN=auc(fpr_CSNN,tpr_CSNN)

15

16

fpr_NN,tpr_NN,thresholds=roc_curve(list(data2['真实标签']),

17

list(data2['positive概率']))

18

roc_auc_DL=auc(fpr_NN,tpr_NN)

19

20

font = {'family': 'Times New Roman',

21

'size': 12,

22

}

23

sns.set(font_scale=1.2)

24

plt.rc('font',family='Times New Roman')

25

26

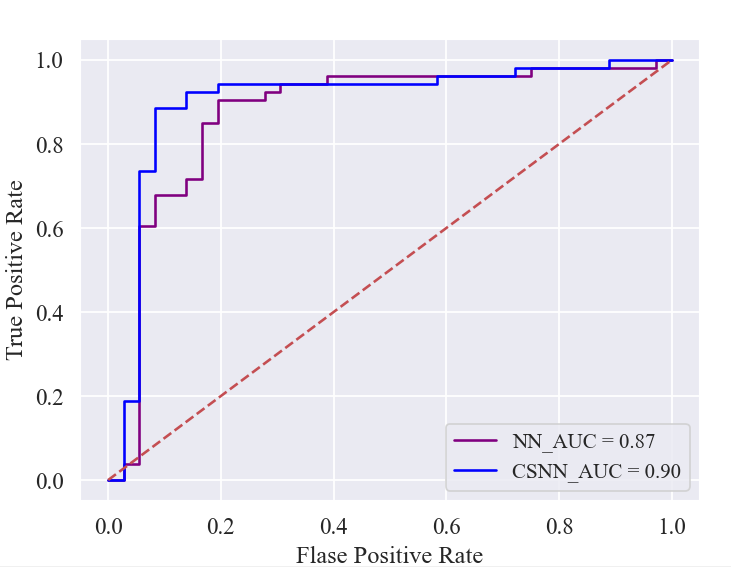

plt.plot(fpr_NN,tpr_NN,'purple',label='NN_AUC = %0.2f'% roc_auc_DL)

27

plt.plot(fpr_CSNN,tpr_CSNN,'blue',label='CSNN_AUC = %0.2f'% roc_auc_CSSSNN)

28

plt.legend(loc='lower right',fontsize = 12)

29

plt.plot([0,1],[0,1],'r--')

30

plt.ylabel('True Positive Rate',fontsize = 14)

31

plt.xlabel('Flase Positive Rate',fontsize = 14)

32

plt.show()

33

34

if __name__=="__main__":

35

Draw_ROC('F:医学大数据课题RA预测RA预测CSSSDL_0.92-0.86-0.90.xlsx',

36

'F:医学大数据课题RA预测RA预测DL_0.83-0.83-0.83.xlsx')
